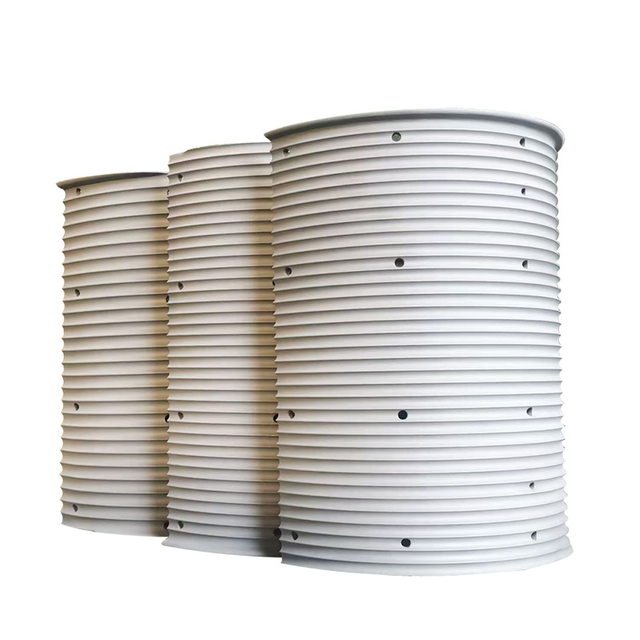

A Lebus grooved rope winch drum enables multi‑layer spooling up to 10 layers with minimal rope damage. The crossover zone geometry reduces radial pressure by 30 percent and rope breakage by over 80 percent compared to standard helical grooves. Manufacturing requires CNC equipment and tighter tolerances, increasing cost by 40 to 60 percent, but the extended rope life (3 to 5 times longer) justifies the investment for winches with more than 1,000 cycles per year.
A carbon steel cable winch drum is the most common type due to its balance of strength, machinability, and cost. Carbon steel grades vary from low carbon (C15, C22) to medium carbon (C45, C55) to high carbon (C75, C85). This article provides data on mechanical properties, wear resistance, and selection criteria for grooved winch drums made of carbon steel.
A 30m rope grooved winch drum is sized to store exactly 30 meters of wire rope, typically in one or two layers. This rope length is common for small mobile cranes, davits, rescue winches, and industrial lifts where the working height or pulling distance is approximately 15 to 30 meters. This article presents drum sizing formulas, groove selection for 30 meters, and winding verification methods.
An 8mm pitch grooved winch drum is designed for wire ropes with diameters of 7.5 to 7.9 mm, where the groove pitch is set to 8 mm (rope diameter plus 1 to 6 percent). These small‑pitch drums are used in light‑duty winches, antenna hoists, laboratory test rigs, and medical lifting devices. This article covers pitch tolerances, manufacturing methods, and performance data for 8 mm pitch grooves.

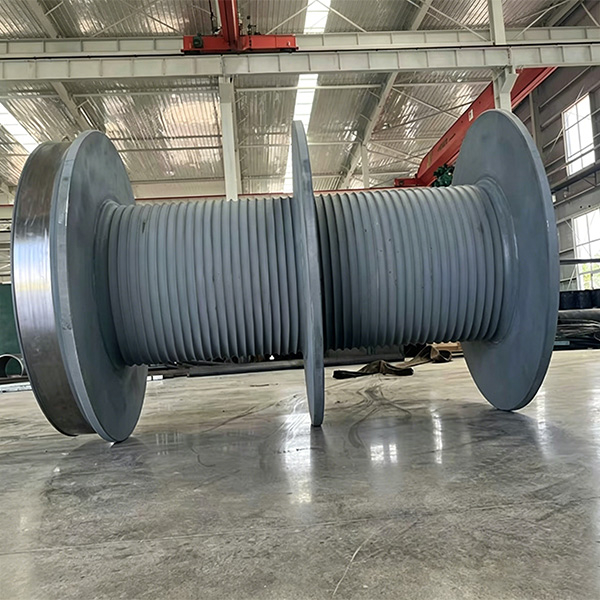

A multiple reels grooved winch drum provides increased rope capacity (up to 400 meters in a twin configuration) and load sharing with tension imbalance below 5 percent. Proper groove phasing (180 degrees for two reels) and either mechanical or electronic synchronization are required. Shaft deflection limits the practical number of reels to four.
A 200mm rope diameter grooved winch drum is one of the largest standard wire rope drums manufactured. It is used for extreme hoisting applications such as deep shaft mining, large floating cranes, and heavy lift vessels. The rope itself is over 200 mm in diameter, requiring a drum of several meters in diameter and weighing tens of tons.
A length 100mm crane cable drum is one of the shortest drum sizes available. It is used in winches where space is severely limited, such as on robotic cranes, small jib arms, or as an auxiliary reel on larger equipment. Despite its short length, a properly designed length 100mm crane cable drum can store sufficient rope for many light duty applications.
A mining crane cable drum operates in one of the most demanding environments for lifting equipment. Dust, moisture, shock loads, and limited maintenance access all affect drum performance. This article covers the design standards, material selection, groove patterns, and wear data for mining crane drums.
