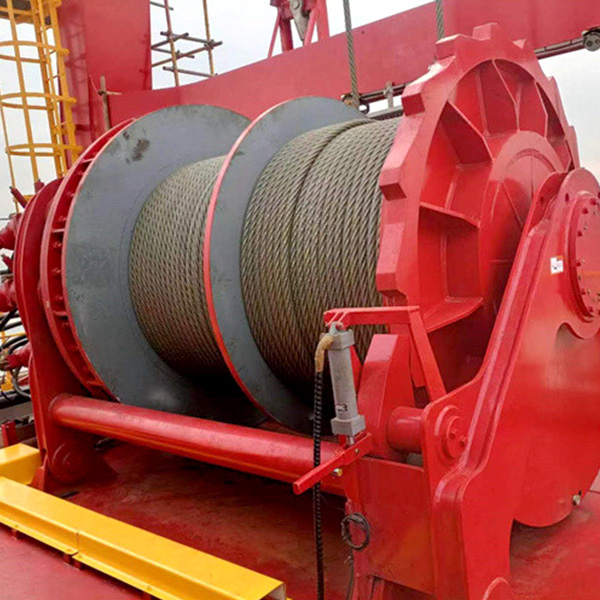

The hydraulic winch with LEBUS grooved drum is widely used in the marine industry. It is used for towing ships, lifting anchors, and handling cargo on board. In the forestry industry, it is employed for skidding logs and lifting tree trunks. It is also applied in the rescue industry, such as for rescuing trapped vehicles in off-road situations and lifting rescue equipment. Moreover, it’s crucial in heavy machinery repair shops for lifting engine blocks and in waste incineration plants for moving large waste bins. For unique marine or forestry applications, our professional design team provides non-standard customization, with a fast production cycle. Our after-sales service includes technical support for specialized use.
MODEL: | the1st layer(kgf): | outermost layer(kgf): | speed(m/min): | diameter of rope(mm): | capacity of rope(m): | working pressure(Mpa): | max oil supply flow(L/min): |
TOPHW500 | 500 | 380 | 63 | 6 | 67 | 14 | 40 |
TOPHW1100 | 1100 | 680 | 41 | 8 | 53 | 14 | 50 |
TOPHW1300 | 1300 | 1000 | 45 | 9 | 48 | 14 | 55 |
TOPHW1500 | 1500 | 1200 | 42 | 10 | 60 | 21 | 55 |
TOPHW2000 | 2000 | 1600 | 35 | 10 | 60 | 21 | 55 |
TOPHW2500 | 2500 | 2000 | 52 | 12 | 52 | 21 | 100 |
TOPHW2600 | 2600 | 2000 | 54 | 12 | 76 | 21 | 100 |
TOPHW3200 | 3200 | 2500 | 44 | 14 | 66 | 21 | 100 |
TOPHW3600 | 3600 | 2800 | 40 | 14 | 66 | 21 | 100 |
TOPHW4500 | 4500 | 3500 | 36 | 15 | 89 | 21 | 110 |
TOPHW5700 | 5700 | 4500 | 26 | 16 | 102 | 21 | 120 |
