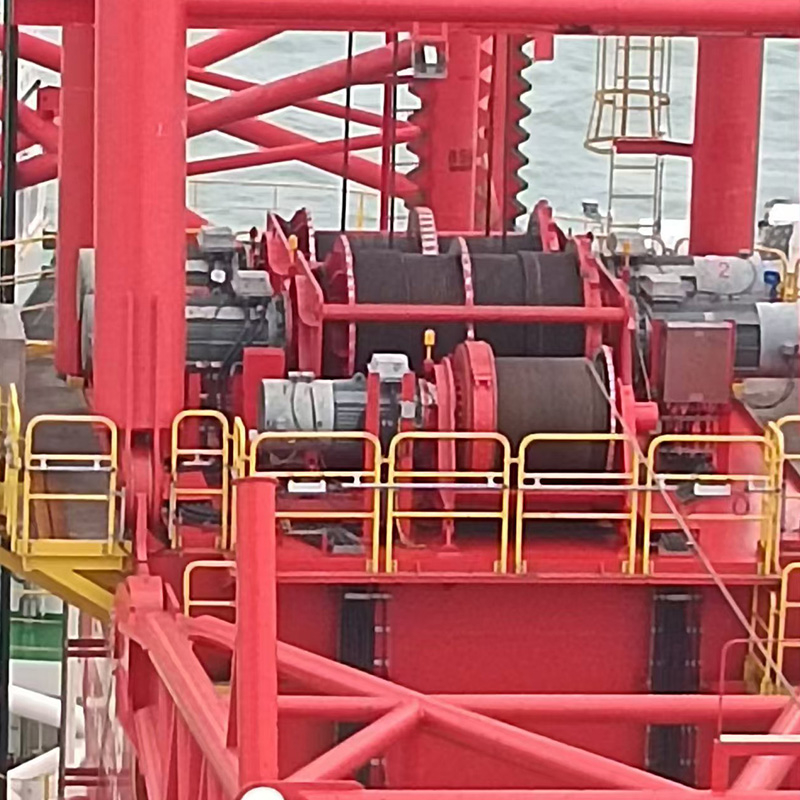

electric winch for widely use transforms electric energy into mechanical energy through the motor, winch is rotor of the motor moves, outputs. Through the brake and the reducer, it reduces speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.
1. Each one circle layer of the grooved drum has two parallel groove and two groove section
2. Make the cable even smooth ;load even distribution
3. Prevent cross &mess in cable rolling working happening
4. Lower the cable damage, extend the cable life
Electric winches mainly used for oversize concrete construction of steel installation and disassembly of mechanical equipment. The wire rope ordered arrangement. Lifting is safe and reliable.It is suitable for bridge,factory,harbor,wharf,etc. Gear reducer driving,Used for hoisting,pulling,drag,compact structure,stable running.
Model: | Layer plly force | Rope speed: | Drum bottom diameter: | Rope diameter: | Rope capaticty(mm): | Motor: | Model of power: |
TOP1-10 | 30 | 30 | 320 | 18 | 180 | 22kw | XH2-420 D51 |
TOP1-20 | 50 | 30 | 400 | 22 | 250 | 37KW | XH3-900 D240 101 |
TOP1-30 | 80 | 30 | 525 | 26 | 350 | 55KW | XH5-1800 D240101 |
TOP1-40 | 100 | 30 | 550 | 30 | 350 | 75KW | XH6-2000 D240 101 |
TOP1-50 | 150 | 30 | 640 | 34 | 500 | 85KW | XH6-3000 D240101 |
TOP1-60 | 200 | 28 | 700 | 34 | 1000 | 90KW | XH7-4300 D240101 |
TOP1-70 | 300 | 25 | 800 | 40 | 2000 | 300KW | XH8-900d240101 |
