● Rated pulling load: 25 Ton
● Matching tower crane model: QTZ80, QTZ125, QTZ160 and large tower cranes
● Rated motor power: 37kW / 45kW optional
● Working voltage: 380V 50Hz three-phase power
● Steel wire rope speed: 8-12m/min
● Steel rope capacity: Max 500m
● Brake system: Dual electromagnetic power-off brake + mechanical brake
● Protection level: IP54 dustproof and waterproof
● Working temperature: -20℃ to 50℃
● Overall weight: 2.8-3.5 Ton

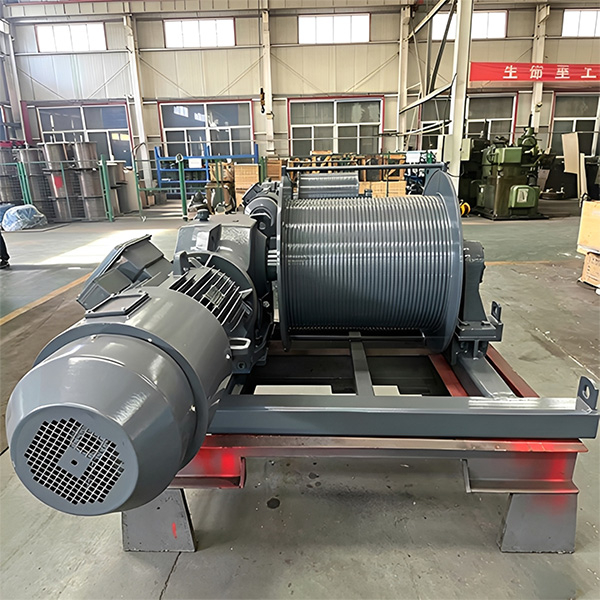

The whole machine uses high strength steel plate welding structure. All stress-bearing parts are forged with alloy material, anti-impact and anti-fatigue. The winch can bear frequent start, stop and forward reverse rotation under heavy load, long service life for long-term construction use.
Equipped with high efficiency IE3 motor and multi-stage precision reducer. High transmission efficiency, low power consumption and low running noise. Variable speed control makes lifting and traction process smooth without impact, easy to control hoisting position accurately.
Built-in power loss brake locks immediately once power cut off. Equipped with overload protection, travel limit protection and emergency stop device. Effectively prevent hook slipping and overloading risks, fully compliant with tower crane safety operation standards.
Modular integrated design saves installation space inside tower crane. Standard universal spare parts make daily inspection, lubrication and part replacement simple. Reduce later maintenance time and operation cost greatly.
This 25 ton electric hoist winch fits most mainstream tower crane brands. We can customize rope length, running speed and control mode according to actual construction demands, supporting remote linkage control system.
● Hoisting and luffing traction of large construction tower cranes
● Heavy cargo lifting for bridge, port and water conservancy engineering
● Large mechanical equipment installation and heavy goods handling
● Outdoor harsh site heavy load pulling and lifting work
1. Strict quality inspection, passed ISO9001 and CE certification, stable reliable quality
2. Professional tower crane dedicated winch, optimized for frequent heavy load working mode
3. Lower energy consumption and simpler maintenance compared with hydraulic winch
4. Complete after-sale service, professional installation guidance and 12-month warranty support
